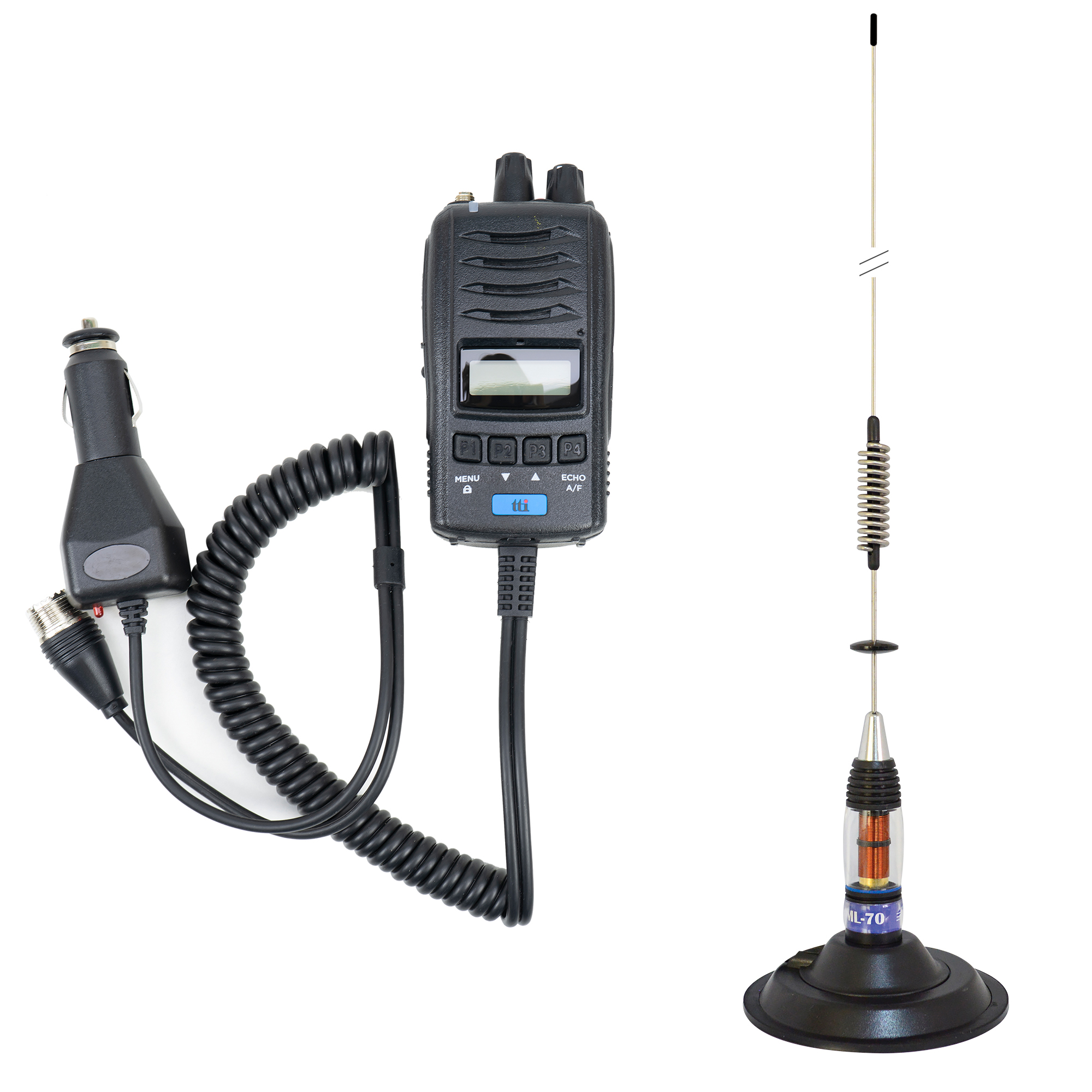

TTi TCB-H100 CB Radio Station Package and PNI ML70 CB Antenna with Magnet

Specifications

Manufacturer

TTi

Product code

PNI-TCB-H100

Model

Portable

Emission band type

AM/FM

Channel

40

Frequency

26.56 - 28.00 MHz

Speaker Audio Power

1 W

Sensitivity (20dB SINAD)

1.4μV for 10dB(S+N)/N in AM; 0.8μV for 20dB SINAD in FM

Audio Signal Distortion

less than 8% @ 1KHz

Emission power

4 W

Hi/Low Power Selection

Yes

Modulation

FM: 1.8KHz ± 0.2KHz, AM: 85-95%

Power

12V/24V (via adapter) or 7.4V (via Li-Ion battery)

Absorbed current

max. 1.6A

Dimensions (W x H x D / Weight)

57 X 35 X 120 mm / 224 g

Channel Scan

Yes

Keypad lock

Yes

Emergency channels

Yes

Roger Beep

Yes

Echo function

Yes

VOX

Yes

Manual Squelch

Yes

S-metre

Yes

Accessory connection

2-pin PNI-M plug

Low battery indicator

Yes

Operating temperature

-26°C ~ +80°C

Sound keys

Yes

2-pin jack

Yes

Radio station

Yes

User Manual

Yes

12 V antenna and power adapter

Yes

Work Strip

CB

Product color (ear)

Black

Frequency of work

26 - 28 Mhz

Maximum power applied

200W

Minimum S.W.R. in the center of the lane

less than 1.2

Length

70 cm (magnetic base included)

Impedance

50 Ohm

Material

Stainless steel

Connector Type

PL

Hole diameter

16 mm

Cable length

4m

Weight

800g

Dimensions

100 x 18 x 5 cm

Earning

4 dBi

Working distance

8 km

Radio Station Antenna

Yes

RG58 Cable

4 m

PL259 Plug

Yes

Magnetic base

145 mm

EAN

5949066547119

Warranty

24 month

countryOfOrigin

CN
