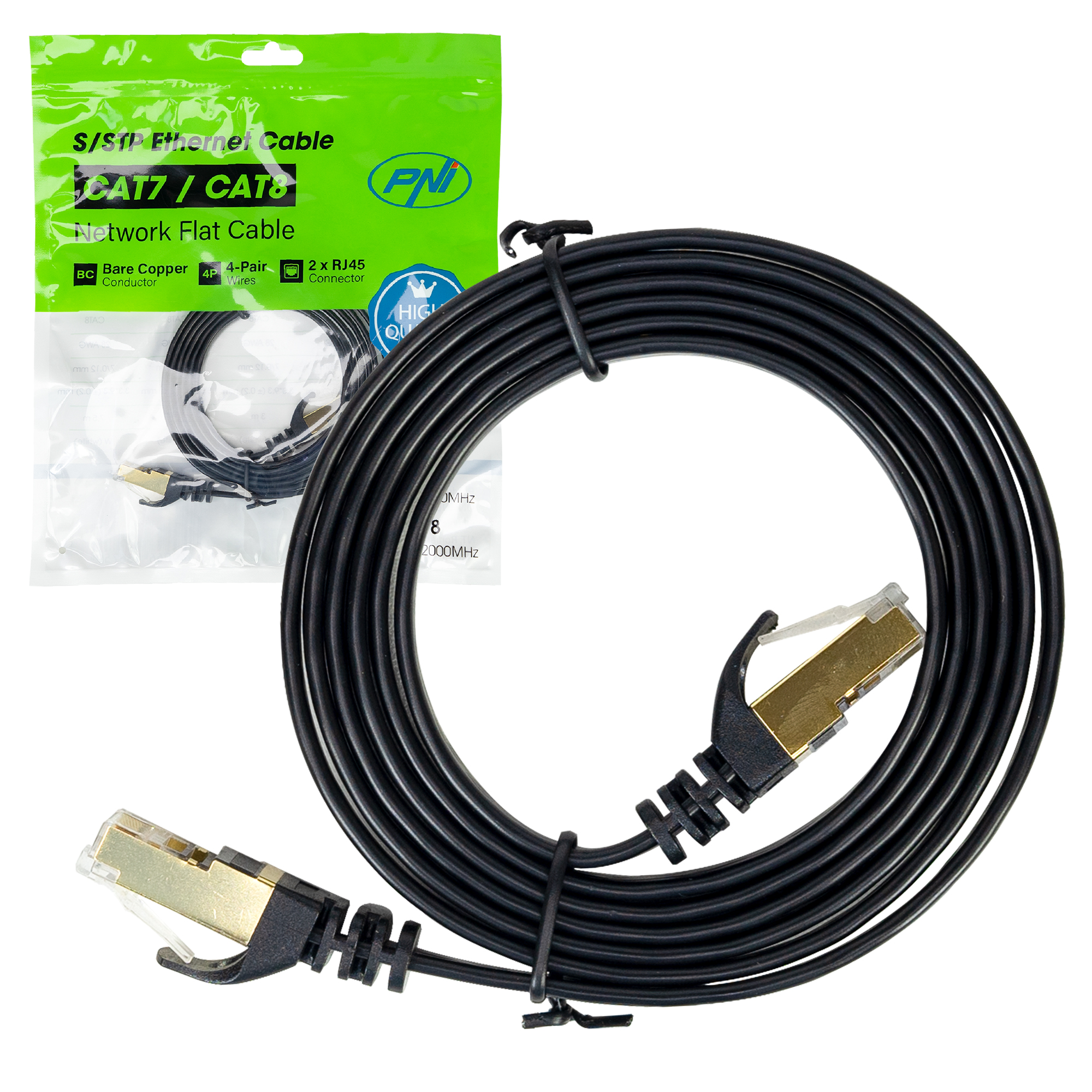

Flat network cable S/STP CAT7 PNI U7015B, Patch, 2 x RJ45, 4 pairs of wires, 32AWG, copper, 10 Gbps, 600 MHz, 1.5m, black
SKU: ONS-PNI-U7015B
8.00 KM In stock
Price includes VAT (17%).
- Free delivery over 200 KM
- Original warranty from authorized distributors
- Expert support from Sarajevo
Stock levels are indicative and may differ from actual availability. Contact us to confirm.
Flat network cable S/STP CAT7 PNI U7015B, Patch, 2 x RJ45, 4 pairs of wires, 32AWG, copper, 10 Gbps, 600 MHz, 1.5m, black
Specifications
- Manufacturer
- NIP
- Product code
- PNI-U7015B
- Color
- Black
- Cable Type
- S/STP CAT7
- Frequency band
- 600 MHz
- Maximum speed
- 10 Gbps
- Cable length
- 1.5 meters
- Conductor
- AWG: 32 AWG Material: Copper Size: 7/0.08±0.008 mm
- Insulation
- Average thickness: 0.12 mm Material: HD-PE Outer diameter: 0.78±0.08 mm Number of threads: 4 pairs
- Table wire (drainage)
- AWG: 32AWG*1C Size: 7/0.08±0.008 mm TC
- Shielding
- Coverage: 100% Overlap: 25% Material: AL-Mylar
- Outer shell
- Average thickness: 0.51 mm Material: PVC Outer Diameter: 2.5*7.4(±0.2)mm
- Yarn color
- 1. blue/white, 2. orange/white, 3. green/white, 4. Brown/White
- Input impedance
- 100±15%Ω (@4~100Mhz) 100±22%Ω (@100~600Mhz)
- Propagation delay
- 548ns/100m max
- Propagation discrepancy
- 45ns/100m Max
- Unbalanced maximum capacitance
- 330pF/100m
- Conductor resistance
- 589Ω/km @20°C
- Minimal insulation resistant
- 5000 MΩ.Km
- Minimum bending radius
- 8 x cable outer diameter
- Network cable
- Yes
- EAN
- 5949066538759
- Warranty
- 12 month
- countryOfOrigin
- CN
