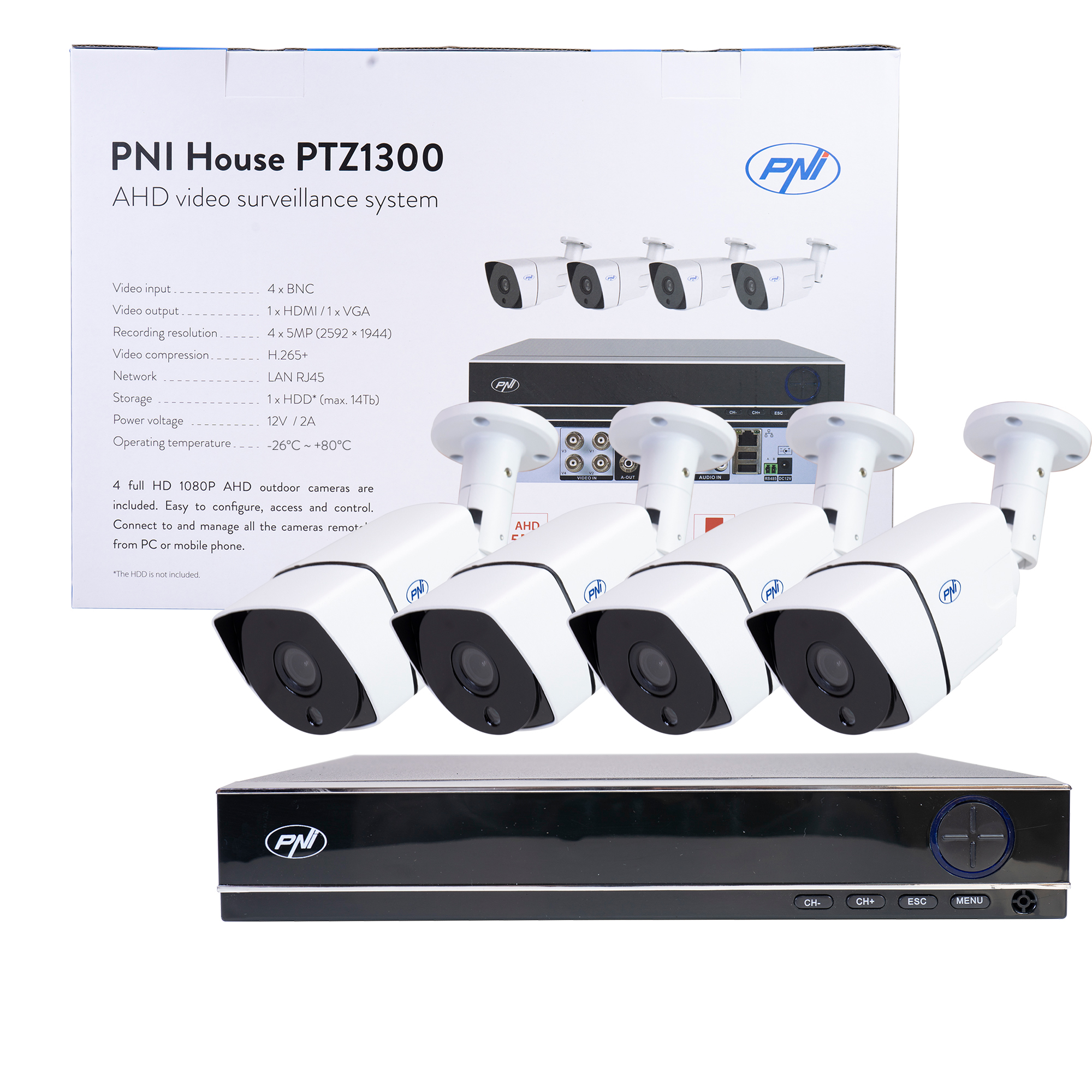

AHD PNI House PTZ1300 Full HD video surveillance kit - NVR and 4 outdoor cameras 2MP full HD 1080P
SKU: ONS-PNI-PTZ1300
302.00 KM In stock
Price includes VAT (17%).
- Free delivery over 200 KM
- Original warranty from authorized distributors
- Expert support from Sarajevo
Stock levels are indicative and may differ from actual availability. Contact us to confirm.
Video surveillance kit with 4 2MP analog cameras and NVR. Supports 4 5M-N analog cameras and 2 IP 1080P cameras. Functions: motion detection, chip detection, human shape detection.
Specifications
- Manufacturer
- PNI
- Product Code
- PNI-PTZ1300
- DVR/NVR Color
- Black
- Camera Color
- White/Black
- Video Inputs
- 4 x BNC
- Video Outputs
- HDMI, VGA, Composite (BNC)
- Playback Resolution
- 1080P(VGA) / 1080P(HDMI)
- Display mode
- 1/4/9
- Audio inputs
- 4 x RCA
- Audio Outputs
- 1 x RCA
- Audio compression
- G711A
- Video compression
- H.265
- Data Storage
- maximum 1 x 14TB HDD (not included) dedicated to video surveillance
- Network Interface
- RJ45 10/100 Mbps
- Serial interface
- 1 x RS485
- Firmware upgrade
- Yes, via USB
- Supply voltage
- 12V/2A
- Power consumption
- max. 15W (without HDD)
- Operating temperature
- -26°C ~ +80°C
- Dimensions
- 255 x 218 x 43 mm
- Recording resolution and number of channels, variants
- Analog: 4 x 5M-N IP: 16 x 1080P / 8 x 5MP Hybrid: 4 x 5M-N + 2 x IP 1080P
- PTZ control
- Supports
- USB ports
- 2 x USB2.0
- Dedicated application
- XMEye
- Network
- Yes, RJ45 LAN Port
- Recording modes
- Manual, alarm, motion detection, scheduled
- Motion detection
- Yes
- Chip detection
- Yes
- Human form detection
- Yes
- Pixels
- 1920 × 1080
- Resolution
- 1080P
- Video Output
- Analog, 75Ω, BNC connector
- Minimum Illumination
- 0 Lux (IR on)
- Degree of protection
- IP66, metal housing
- IR illumination distance
- Up to 30 m
- Number of IR LEDs
- 36
- Power supply
- 12V / 1A
- Lens
- 3.6 mm
- Sensor resolution
- 2MP
- DVR / NVR
- Yes
- Surveillance cameras
- 4 indoor/outdoor cameras
- Camera connection cables
- 4 x 18.3 m
- Power splitter
- Yes, 1 x 4
- Power supply NVR / DVR
- 230V -> 12V 2A
- CD Software
- Yes
- User manual
- Yes
- USB mouse
- Yes
- Remote control
- Yes
- Camera power supply
- 230V -> 12V 4A
- EAN
- 5949066523441
- Warranty
- 24 month
- countryOfOrigin
- CN
