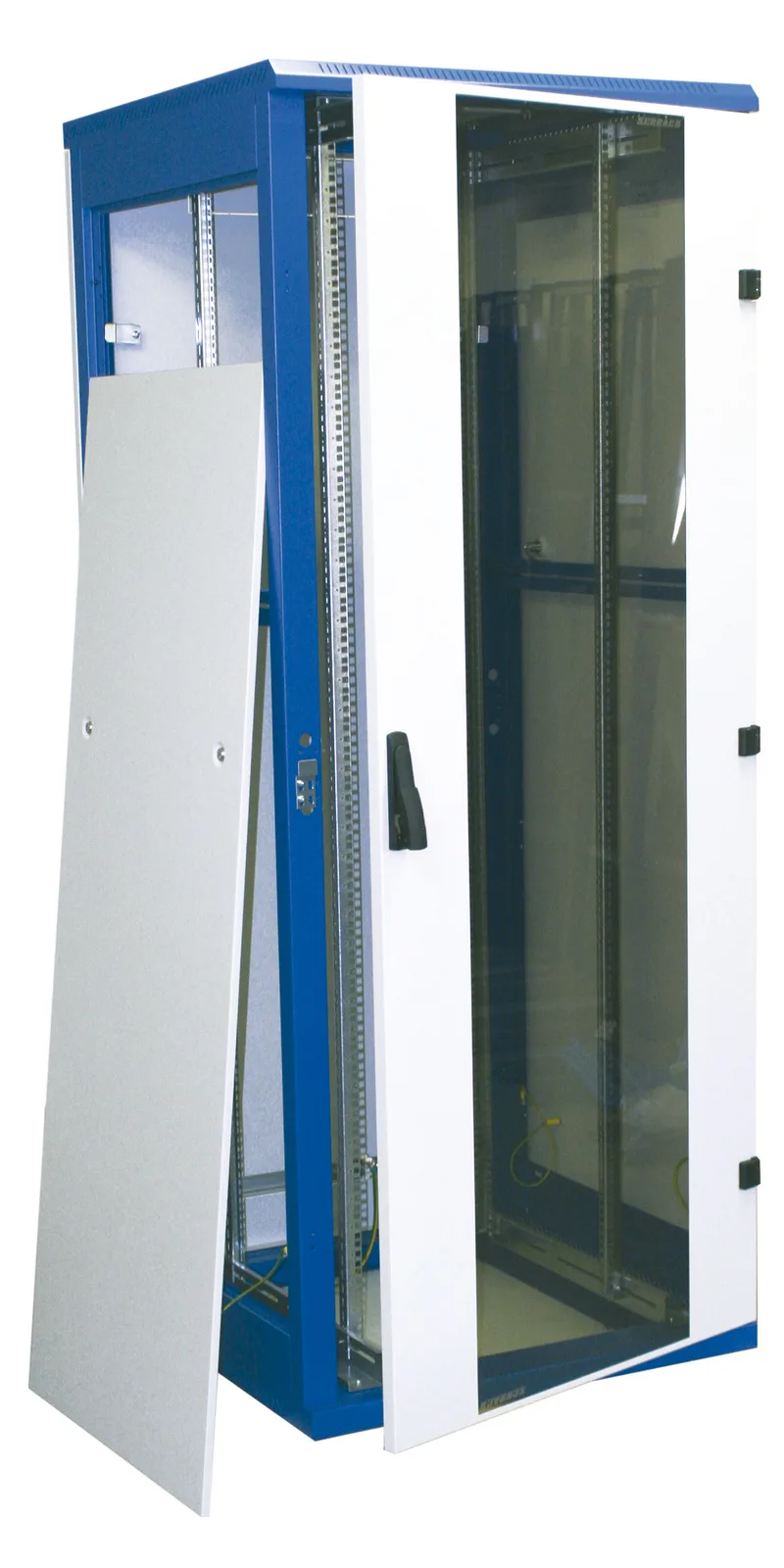

Name: Samostojeći komunikacijski ormar DS 600x1970x1000, 19", 42U
SKU: SCH-DS426010-A
Price: 1532.30 BAM
Availability: InStock

TEHNIČKI PODACI

Welded powder-coated sheet steel skeleton
Visina: 42,U
Širina: 600mm
Dubina: 1000mm
Boja:

svijetlo-siva RAL7035.
okvir plavi RAL5005

Maximum Load:

15-22U: 300kg
27-47U: 400kg

Degree of protection: IP20
4 mm thick safety glass doors with handsome swing handle. Prepared for half-cylinder type locks. Halfcylinder lock (Order-number: DV900333) optional available.
Doors hinged right. Can be changed to hinging on left.
External hinge system allows up to 180 degree door opening angle.
Glass doors can be replaced by optional DSRT doors (full metal or perforated, full width or double-wing).
Removeable and lockable side-panels. Key included. For better passive cooling, side-panels can be replaced by optional perforated side-panels DSRS.
Removeable and lockable rear-panel. Key included. Rear panel can be replaced by optional DSRT doors (glass, full or perforated metal, full width or double-wing) or by perforated rear-panel DSRR.
19” rails (4 pcs.) galvanised, continuously depthadjustable. Numbering of Height-Units (U) by laser for easy readability.
In 800mm wide DS enclosures, you can choose to adjust the 19” rails to a width of 21”.
In 900, 1.000 and 1.200 mm deep DS enclosures, there is an additional pair of vertical rails installed in half depth. This makes installation of high depth accessories together with standard accessories possible at the same time.
Space between front vertical 19”-rail and door glass at max. spacing:

W600 – 35mm
W800 – 50mm

Space between rear vertical 19”-rail and rear panel at max. spacing:

W600 – 35mm
W800 – 55mm

Maximum distance between vertical rails (19”-rails) in free-standing cabinets:

W600 x D400 – 310mm
W600 x D600 – 510mm
W600 x D800 – 710mm
W600 x D900 – 810mm
W600 x D1000 – 910mm
W600 x D1200 – 1110mm
W800 x D600 – 470mm
W800 x D800 – 670mm
W800 x D900 – 770mm
W800 x D1000 – 870mm
W800 x D1200 – 1070mm

Maximum usable depth in free-standing cabinets when installed e.g. on shelves:
- D400 – 375mm
- D600 – 575mm
- D800 – 775mm
- D900 – 875mm
- D1000 – 975mm
- D1200 – 1175mm
Spacing between vertical 19“-rails: 451 mm
Roof construction with opening, 19” punched. Flexible covered by removable plates of different heights to allow installation of fan-units and cable-entry panels. Remaining opening can be closed by use of one these plates.
- D400 - Opening: 6U, Covering: 1 x 4U and 1 x 2U
- D600 - Opening: 8U, Covering: 1 x 4U and 2 x 2U
- D800 - Opening: 10U, Covering: 2 x 4U and 1 x 2U
- D900 - Opening: 12U, Covering: 2 x 4U and 2 x 2U
- D1000 - Opening: 12U, Covering: 2 x 4U and 2 x 2U
- D1200 - Opening: 12U, Covering: 2 x 4U and 2 x 2U
Floor construction with opening, 19” punched. Covered by removable plate in full height.
- D400 - Opening: 6U, Covering: 1 x 6U
- D600 - Opening: 8U, Covering: 1 x 8U
- D800 - Opening: 10U, Covering: 1 x 10U
- D900 - Opening: 12U, Covering: 1 x 12U
- D1000 - Opening: 12U, Covering: 1 x 12U
- D1200 - Opening: 12U, Covering: 1 x 12U
Roof unit assemblies can also be fitted to floor section. Optional base required.
Cable entry possible via roof, floor and rear panel. Delivered with demountable or break-out blanking plates.
Brush strip panel for roof (DBK24800) optional.
Air vents for passive ventilation.
Earthing:
- M8-Earthing point plus 19“-Earthingset in the rear of the cabinet
- FastOn-Earthing-connections to all dismountable parts pre-installed
Included assembly materials:
- 16 x Cage nuts, bolts and washers M6
- 4 x Levelling feet
Wide range of available accessories (bases, fan-units, cable entry panels, fixed shelves, patch panels, cable management, PDUs, doors, etc.).
Enclosure is delivered fully-assembled on a disposable pallet.
